Mo-Dad 2
The

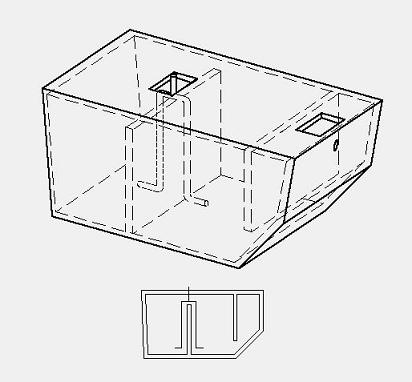

Mo-Dad 2 System is a unique concept and design of a
three-compartment sewer system. This system was tested at
C-K Associates, which is and ANSI/NSF certified lab. At
this lab the Mo-Dad 2 system went through strenuous testing
and has met the ANSI/NSF requirement of the 1996 standards
and is approved throughout the United States.
The Mo-Dad 2 model sizes are 500 GPD, 600, GPD, 750 GPD,
1000 GPD, and 1500 GPD.
The 500 gallon per day of the Mo-Dad System has three
compartments. They are: 1) pretreatment post air
compartment, 2) aeration compartment and 3) a final
clarification compartment.
Pretreatment Post Air Compartment
The pretreatment post air compartment is the first stage of
the treatment system. Wastewater from the household enters
this compartment where air is introduced to begin the
promotion of growth of aerobic organisms. Also, the
pre-tank is designed to hold back inorganic material from
the aeration compartment.
Aeration Compartment
In the aeration compartment wastewater enters through a
four-inch collar. The aeration compartment in the Mo-Dad 2
System is designed to be set in the right environment for
aerobic bacteria to grow by having an air pump which sends
in oxygen through low pressure diffusers. These diffusers
allow air to flow through them, which blows in all
directions mixing up all the solids. This then promotes the
growth of aerobic organisms which breakdown the organic
solids in the wastewater producing an inorganic and stable
organic solid.
Clarifier Compartment
Wastewater from the aeration compartments seeps into the
clarifier from the bottom of the tank. In the Mo-Dad 2
System the clarifier is referred to as the quiet zone. This
compartment is called the quiet zone because there is no
mixing of solids and wastewater. In the Mo-Dad 2 System
there is a patent design deflector which diverts the solids
back into the aeration compartment to be reprocessed.
Another patent component is the Mo-Dad II divider T. This
divider diverts the water flow of clean liquids into the
effluent discharge by slowing don the flow of
water.
Material:
Poly
Rated Capacity: 500 GPD
Material: A/C Metal
Rated Capacity: 500 GPD, 600 GPD, 750 GPD, 800 GPD, 1000
GPD, and 1500 GPD
Material: Concrete
Rated Capacity: 500 GPD, 600 GPD, 750 GPD, 800 GPD, 1000
GPD, and 1500 GPD
